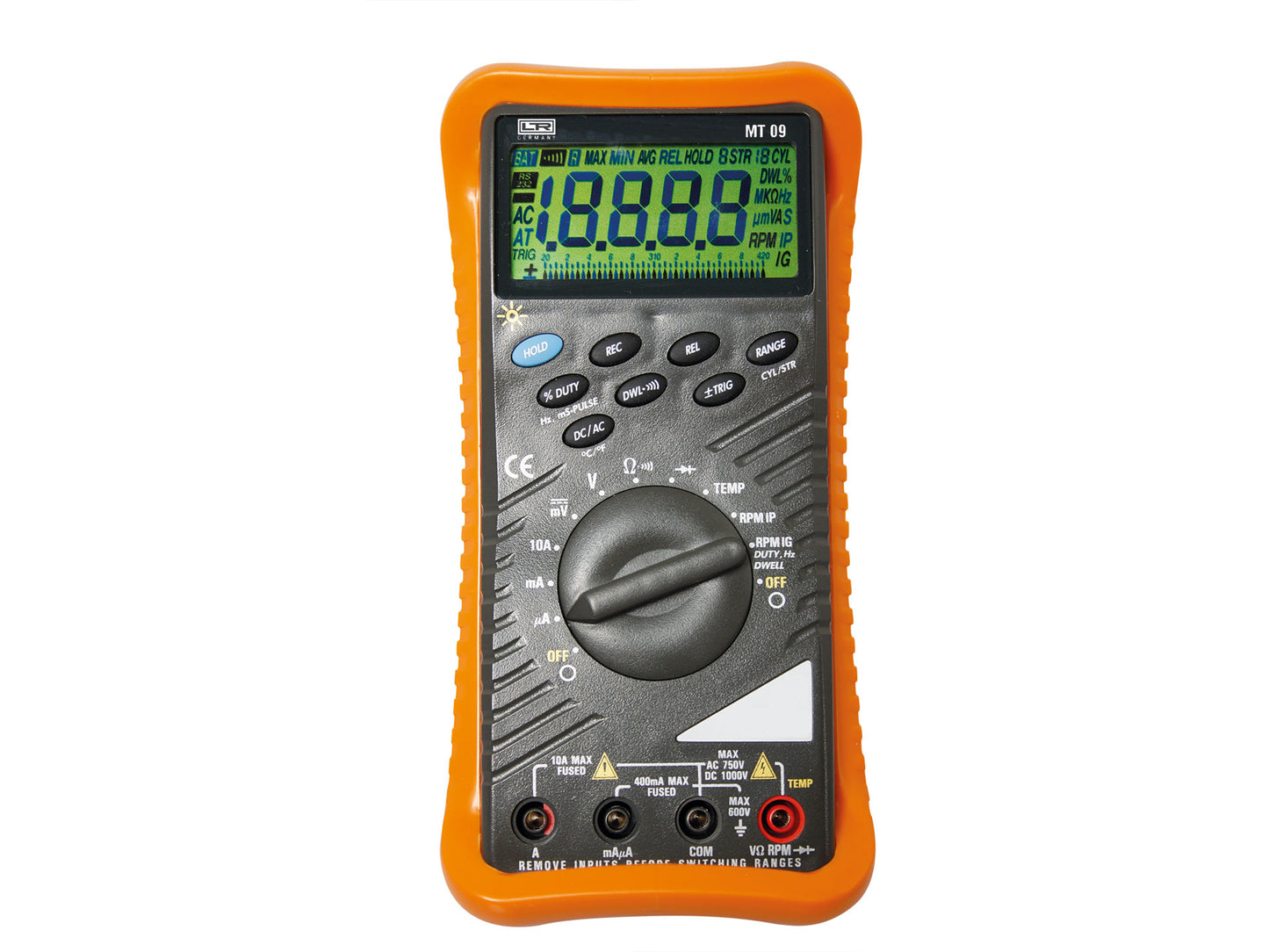

• Universal-Multitester für Profianwender CAT III 600V und CAT II 1000V
1 1

Autotestgeräte Leitenberger

Universal multi-tester for professional users CAT III 600V and CAT II 1000V

Universal multi-tester for professional users CAT III 600V and CAT II 1000V

€309,48 EUR
€309,48 EUR
Sale Sold out
  • Professional universal multitester for vehicle and commercial vehicle electrics and electronics
  • Digital, 4-digit LCD display and additional bar display
  • Overload protection with visual and acoustic signals. Automatic shutdown after 30 minutes
  • Basic functions for the rotary switch:
    • Current measurement DC and AC, voltage measurement DC and AC, resistance measurement, continuity test, diode test, temperature measurement, speed and frequency, and much more.
  • Button functions:
    Hold = storage of measured values
    REC = Max., Min. and Average measurement
    REL = relative measurement
    RANGE = range (+/-), trigger cylinder cycles
    % DUTY = duty cycle
    DWL = closing angle, continuity measurement
    DC / AC = switching between AC and DC or °F and °C
    % working cycle 0.9 - 99.9% (30 RPM -19.999 RPM, pulse range > 2µs)
    Closing angle 0.0 - 356.4° (30 RPM - 19,999 RPM, pulse range > 2µs)
    Pulse ranges 0.002 - 199.9 ms (30 RPM - 19.999 RPM, pulse range > 2µs)
    Continuous test 1.2 V - diode test max. 2.5 mA - counter sensitivity 150 mV
  • Technical data:
    measurement options;
    direct voltage (DC V); Area; Resolution; Accuracy; Input impedance
    4V; 1mV; ±(0.3% + 2 dig.); approx. 11 MΩ
    40V; 10mV; ±(0.3% + 2 dig.); approx. 10 MΩ
    400V; 0.1V; ±(0.75% + 3 dig.); approx. 10 MΩ
    1000V; 1V; ±(0.75% + 2 dig.); approx. 11 MΩ
  • DC voltage (DC mV); Area; Resolution; Accuracy; Input impedance
    400mV; 0.1mV; ±(0.3% + 2 dig.); >100 MΩ
  • AC voltage (AC V [45 Hz to 1 KHz]); Area; Resolution; Accuracy; Input impedance
    4V; 1mV; 50 Hz - 60 Hz ±(0.75% + 3 dig.) / 45 Hz - 1 KHz ±(2.5% + 5 dig.); approx. 11 MΩ
    40V; 10mV; 50 Hz - 60 Hz ±(0.75% + 3 dig.) / 45 Hz - 1 KHz ±(2.5% + 5 dig.); approx. 10 MΩ
    400V; 0.1V; 50 Hz - 60 Hz ±(0.75% + 3 dig.) / 45 Hz - 1 KHz ±(2.5% + 5 dig.); approx. 10 MΩ
    750V; 1V; 50 Hz - 60 Hz ±(0.75% + 3 dig.) / 45 Hz - 1 KHz ±(2.5% + 5 dig.); approx. 10 MΩ
  • AC voltage (AC A [45 Hz to 1 KHz]); Area; Resolution; Accuracy; Input impedance
    400µA; 0.1 μA; ±(0.5% + 1 dig.);100 μV/μA
    4000µA; 1 μA; ±(0.5% + 1 dig.);100 μV/μA
    40mA; 0.01mA; ±(0.5% + 1 dig.);1.2 mV/mA
    400mA; 0.1mA; ±(0.5% + 1 dig.);1.2 mV/mA
    4A; 0.001A; ±(1.0% + 5 dig.); 75mV/A

    direct current (DC A); Area; Resolution; Accuracy; Input impedance
    10A; 0.01mA; ±(1.0% + 5 dig.); 75mV/A
    400µA; 0.1 μA; ±(1.0% + 5 dig.); 100μV/mA
    4000µA; 1 μA; ±(1.0% + 5 dig.); 1.2mV/mA
    40mA; 0.01mA; ±(1.0% + 5 dig.); 1.2mV/mA
    400mA; 0.1mA; ±(1.0% + 5 dig.); 1.2mV/mA
    4A; 0.001A; ±(1.0% + 5 dig.); 75mV/A
    10A; 0.01A; ±(1.0% + 5 dig.); 75mV/A

    Resistance (Ohms); Area; Resolution; Accuracy; Input impedance
    400Ω; 0.1Ω; ±(0.5% + 10 dig.); <1.2V
    4KΩ; 1Ω; ±(0.5% + 3 dig.); <1.2V
    40KΩ; 10Ω; ±(0.5% + 3 dig.); <1.2V
    400KΩ; 1KΩ; ±(0.5% + 3 dig.); <1.2V
    4 MΩ; 1KΩ; ±(0.5% + 3 dig.); <1.2V
    40MΩ; 10KΩ; ±(1.5% + 10 dig.); <1.2V

    ​​​​​Continuity test; Test voltage < 1.2 V

    diode test; Test voltage < 3 V; Max. test current 2.5 mA

    % working cycle 0.9 - 99.9% (30 RPM -19.999 RPM, pulse range > 2μs)
    Closing angle 0.0 - 356.4° (30 RPM - 19,999 RPM, pulse range > 2μs)
    Pulse ranges 0.002 - 199.9 mS (30 RPM - 19.999 RPM, pulse range > 2μs)
    Continuous test 1.2 V - diode test max. 2.5 mA - counter sensitivity 150 mV

    Dimensions: 54mm x 103mm x 208mm
    Weight: 622g
    Battery: 9V block

  • Article number: MT 09 ( 041719_1 )
  • scope of delivery
    • 1 multimeter with protective cap
    • 1 test cable set red/black
    • 1 temperature probe
    • 1 inductive clamp
    • Delivered in a sturdy plastic case
