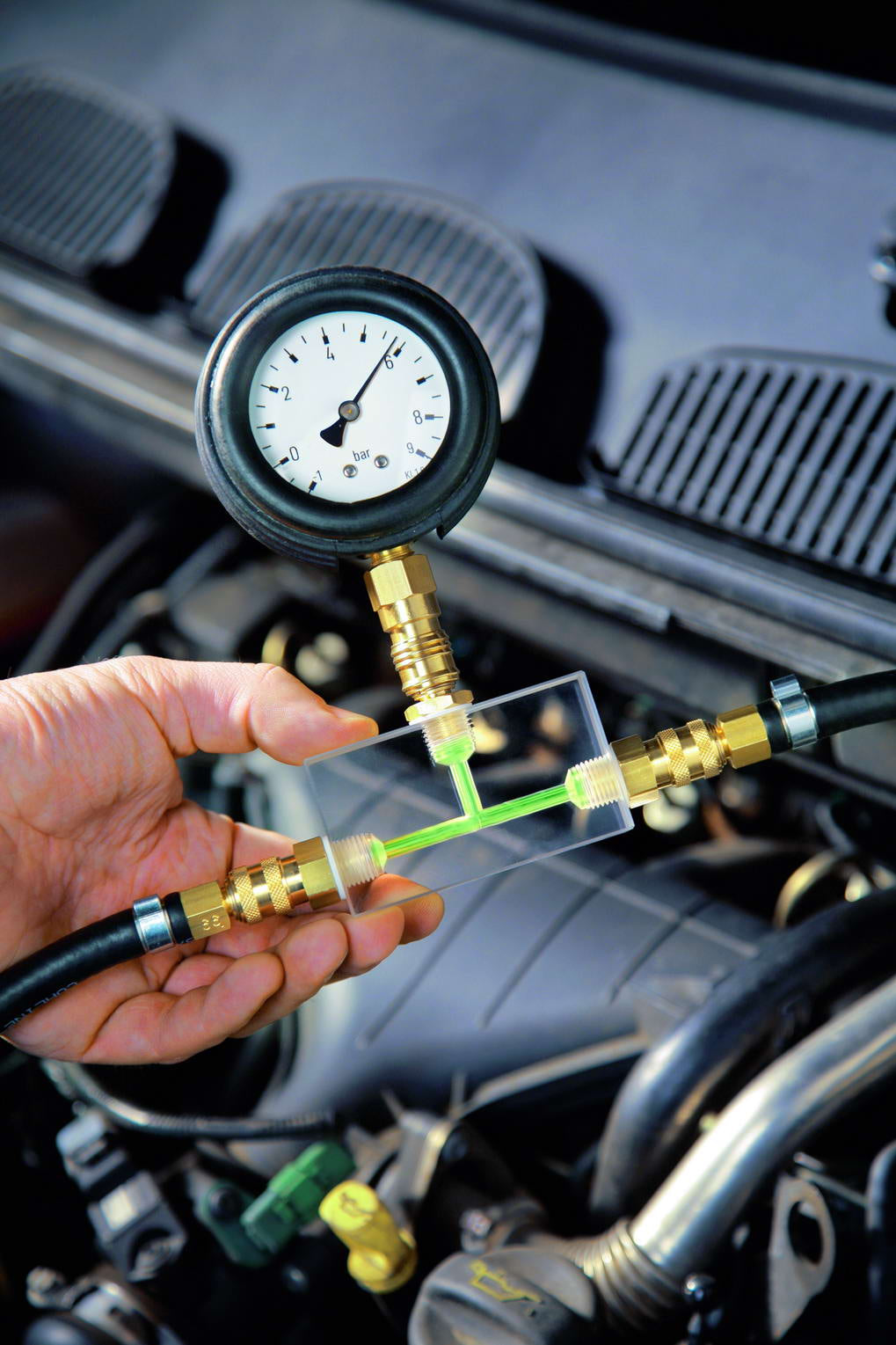

Fuel system pressure tester with analog pressure and vacuum display

• For quick, easy and professional testing of the supply and return pressure on injection systems of petrol and diesel engines
• e.g. for testing and diagnosing fuel pumps, system pressure regulators and leaks etc.
• Due to the special adapter combination, it can be used especially for vehicles with plastic quick couplings according to SAE standards
• In conjunction with other adapters, almost universally applicable
• The fuel flow can be closely observed through a plexiglass body (air bubble detection)
• Pressure and vacuum testing from -1 to +15 bar
• All individual parts available as spare parts
• Extensive range of adapters as accessories
• Article number: LR 180_AK2 ( 041620_2 )

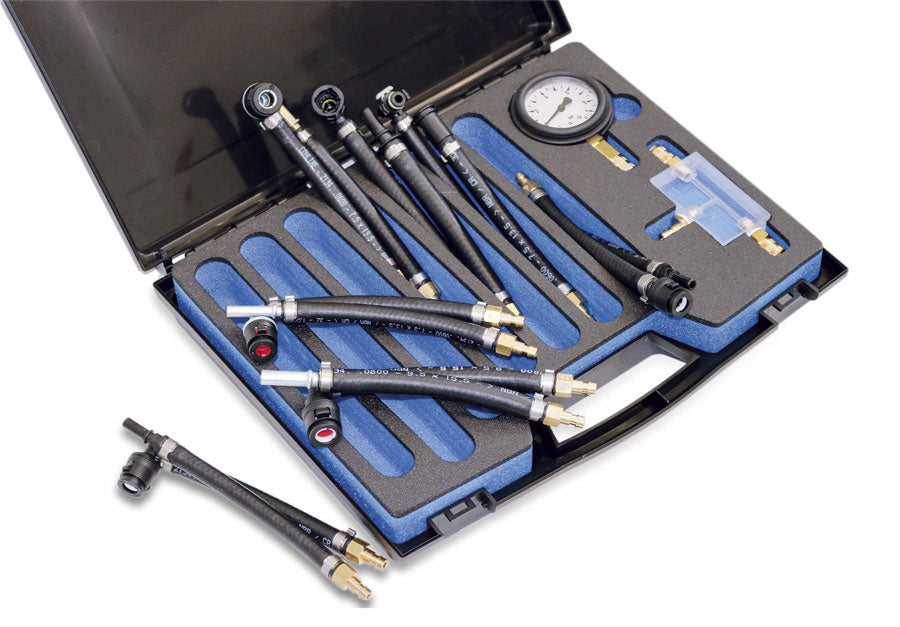

SCOPE OF DELIVERY

• 1 precision vacuum manometer NG 63, measuring range -1...+9 bar with quick coupling
• 1 Plexiglass body with quick couplings
• 7 DPAK adapter pairs (coupable),
  • DPAK 64G; plug diameter 9.89 mm, plug length (locking) 30 mm, plug nipple straight, plug coupling 90°
  • DPAK 65G; plug diameter 7.89 mm, plug length (locking) 21 mm, plug nipple straight, plug coupling 90°
  • DPAK 66G; plug diameter 7.89 mm, plug length (locking) 33 mm, plug nipple straight, plug coupling 90°
  • DPAK 67G; plug diameter 9.49 mm, plug length (locking) 21 mm, plug nipple straight, plug coupling 90°
  • DPAK 68G; plug diameter 7.89 mm, plug length (locking) 21 mm, plug nipple straight, plug coupling straight
  • DPAK 69G; plug diameter 9.89 mm, plug length (locking) 24.5 mm, plug nipple straight, plug coupling 90°
  • DPAK 70G; plug diameter 11.8 mm, plug length (locking) 10.8 mm, plug receptacle straight, plug coupling 90°
• Delivered in a sturdy plastic case
