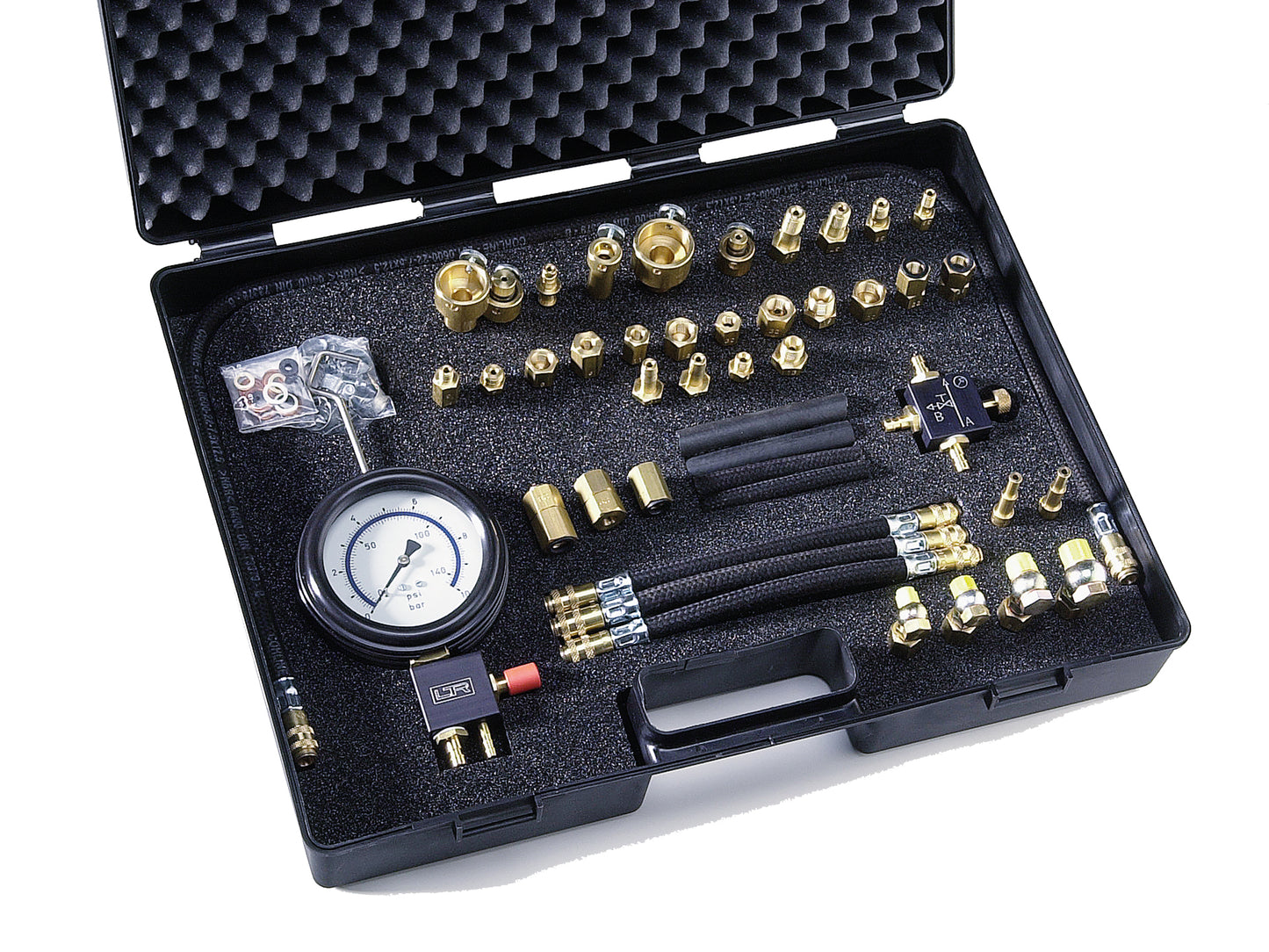

Fuel low pressure diagnostic kit 30 adapters

Fuel low pressure diagnostic kit 30 adapters

€1.398,45 EUR
€1.398,45 EUR
Sale Sold out
  • For quick, easy and professional testing and diagnosis of mechanical and electronic fuel injection systems.
  • Thanks to the special adapter combination, it can be used for almost all European and Asian vehicles with the following injection systems:
    • K-Jetronic, KE-Jetronic, L/LH-Jetronic, Motronic, MPI, HMPI, EFI, DIGIFANT, Mono-Jetronic, Opel-Multec, Weber CFI
  • Can be used almost universally in conjunction with other adapters.
  • The intermediate, adjustable 3-way valve between the warm-up regulator and the flow divider allows the system and control pressure to be checked as well as the leakage test of the injection system.
  • With drain valve for emptying the remaining fuel.
  • Measuring range 0...10 bar / 0...140 psi, fine graduation 0.1 bar
  • Precision pressure gauge NG 100 with robust rubber protective cap and fastening hook. Can be used for European and Asian vehicles. Other pressure gauge measuring ranges on request.
  • Optionally available with ISO calibration certificate.
  • All individual parts are available as spare parts.
  • High-performance quality product, Made in Germany.
  • Extensive range of adapters as accessories.
  • Item number: LR 180/4 ( 041615 )
  • SCOPE OF DELIVERY
    • 1 pressure gauge NG 100, MB 0...10 bar / 0...140 psi
    • 1 3-way valve
    • 3 hoses of 0.25 m each, with quick coupling on both sides
    • 30 DPAK adapters (can be coupled),
      • DPAK 1; M 4x1.5 (male thread, angle adapter)
      • DPAK 2; M12x1.5 (male thread, angle adapter)
      • DPAK 3; M8x1 (male thread)
      • DPAK 4; M12x1.5 (external thread)
      • DPAK 5; M12x1.5 (internal thread)
      • DPAK 6; M 8x1 (internal thread)
      • DPAK 7; Ø 6 mm, Ø 8 mm (fuel hose, 2 parts)
      • DPAK 8; M10x1 (male thread)
      • DPAK 9; M10x1 (male thread, angle adapter)
      • DPAK 11; M8x1 (internal thread)
      • DPAK 12; M14x1.5 (internal thread)
      • DPAK 13; M14x1.5 (male thread)
      • DPAK 14; M8x1 (male thread, angle adapter)
      • DPAK 19; M16x1.5 (male thread)
      • DPAK 21; M10x1 (internal thread)
      • DPAK 22; 7/16" - 20UNF V6
      • DPAK 24; Plug connection, Ø 11 mm
      • DPAK 26; 7/16"-20UNF
      • DPAK 27; 7/16"-20UNF V6; (female thread, angle adapter)
      • DPAK 28; 7/16"-20UNF V6 (internal thread, angle adapter, rotatable with angle)
      • DPAK 29; VG 8 (internal thread, angle adapter, adapter with release pin)
      • DPAK 30; VG 8 (internal thread, adapter with release pin)
      • DPAK 31; Hose nozzles, Ø 8 mm, 2 pieces
      • DPAK 32; M14x1.5 (internal thread, with sealing cap)
      • DPAK 34; Plug connection Ø 8 mm, 2-part
      • DPAK 35; Plug connection, Ø 14 mm; 2 parts
      • DPAK 36; M12x1.25 (male thread, hollow screw)
      • DPAK 37; M12x1.5 (male thread, hollow screw)
      • DPAK 38; M10x1 (male thread, hollow screw)
      • DPAK 39; M 8x1 (external thread, hollow screw)
    • 1 extension hose 1.00 m, quick coupling on both sides
    • 1 drain valve AVE 01 with drain hose
    • Delivered complete in a sturdy plastic case
