Fuel Low Pressure Diagnostic Kit 12 adapters
Fuel Low Pressure Diagnostic Kit 12 adapters
Regular price
€452,20 EUR
Regular price
Sale price
€452,20 EUR
Unit price
per
Couldn't load pickup availability
- For quick, easy and professional testing and diagnosis of mechanical and electronic fuel injection systems.
- Thanks to the special adapter combination, it can be used for many European and Asian vehicles with the following injection systems:
- K-Jetronic, KE-Jetronic, L/LH-Jetronic, Motronic, MPI, HMPI, EFI, DIGIFANT, Mono-Jetronic, Opel-Multec, Weber CFI
- Can be used almost universally in conjunction with other adapters.
- The intermediate, adjustable 3-way valve between the warm-up regulator and the flow divider allows the system and control pressure to be checked as well as the leakage test of the injection system.
- Measuring range 0...10 bar / 0...140 psi, fine graduation 0.1 bar
- Precision pressure gauge NG 100 with robust rubber protective cap and fastening hook. Can be used for European and Asian vehicles. Other pressure gauge measuring ranges on request.
- Optionally available with ISO calibration certificate.
- All individual parts are available as spare parts.
- High-performance quality product, Made in Germany.
- Extensive range of adapters as accessories.
- Item number: LR 180/2 ( 041605 )
-

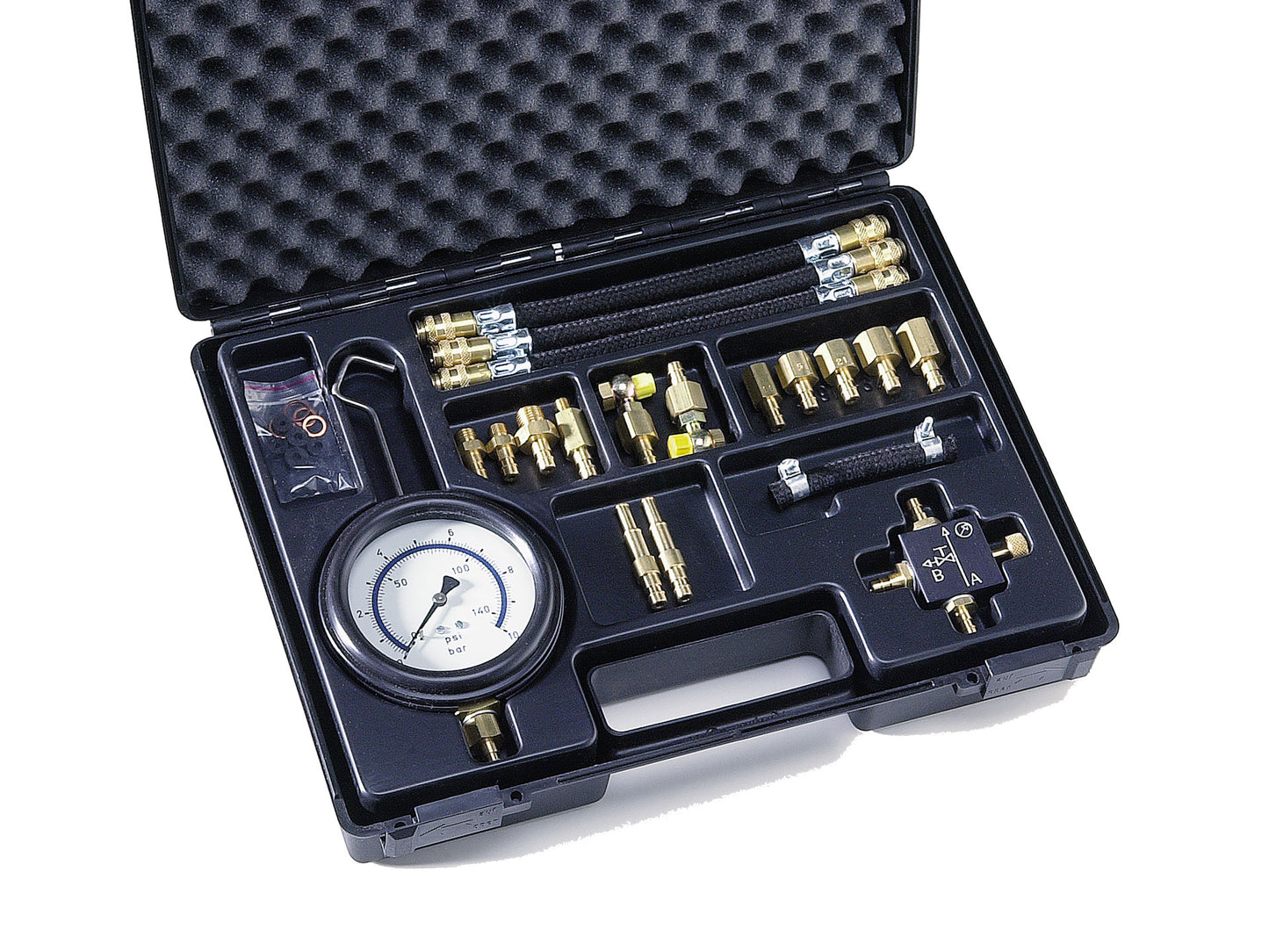

SCOPE OF DELIVERY
- 1 pressure gauge NG 100, MB 0...10 bar / 0...140 psi
- 1 3-way valve
- 3 hoses of 0.25 m each, with quick coupling on both sides
- 12 DPAK adapters (can be coupled),
- DPAK 3; M8x1 (male thread)
- DPAK 4; M12x1.5 (external thread)
- DPAK 5; M12x1.5 (internal thread)
- DPAK 6: M8x1 (internal thread)
- DPAK 7; Ø 6 mm, Ø 8 mm (fuel hose, 2 parts)
- DPAK 8; M10x1 (male thread)
- DPAK 9; M10x1 (male thread, angle adapter)
- DPAK 11; M8x1 (internal thread)
- DPAK 12; M14x1.5 (internal thread)
- DPAK 13; M14x1.5 (male thread)
- DPAK 14; M8x1 (male thread, angle adapter)
- DPAK 21; M10x1 (internal thread)
- Delivered complete in a sturdy plastic case
