High-pressure test device for GDI systems, analogue

• For quick, easy and safe static and dynamic pressure testing of the high-pressure circuit on GDI* engines
• Max. working pressure up to 400 bar
• Required, e.g.:
  • to check the pressure pump when starting the engine or
  • the system pressure test at changing speeds
• Universally applicable
• Article number: GDP 400 (042150_1)

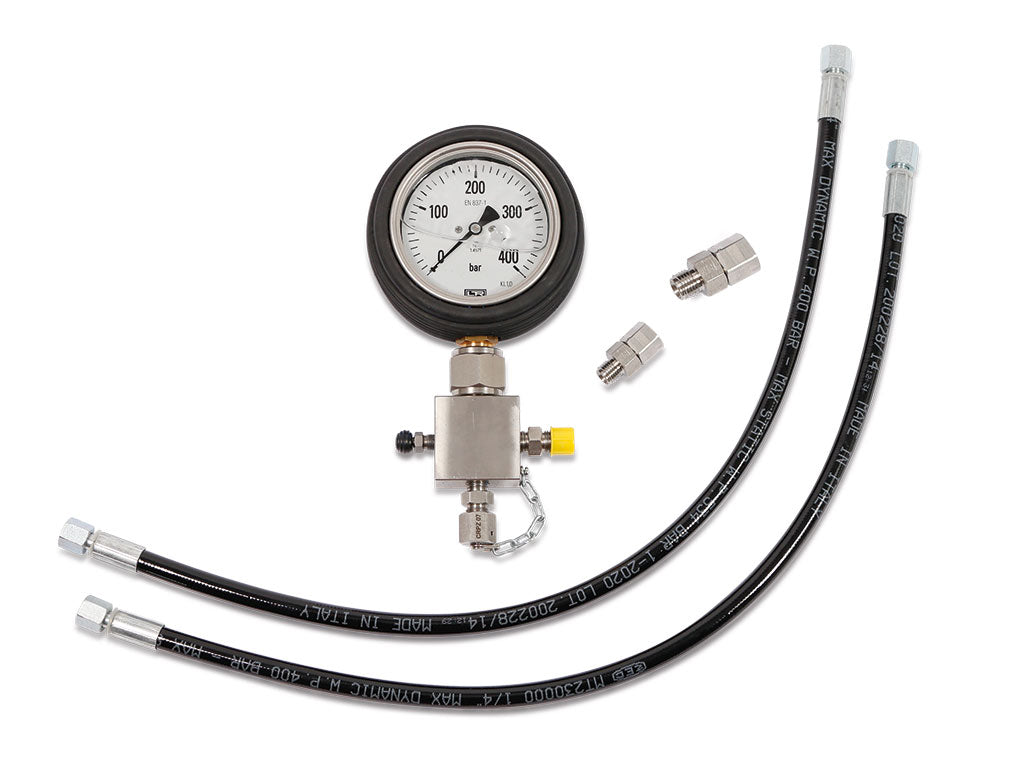

• SCOPE OF DELIVERY

  • 1 test block with analog pressure gauge with GSK, NG 100, measuring range 0...400 bar
  • 2 flexible pressure lines, length 0.7 m
  • 2 adapters
  • Delivered in a sturdy plastic case

* GDI = gasoline engine with direct injection
