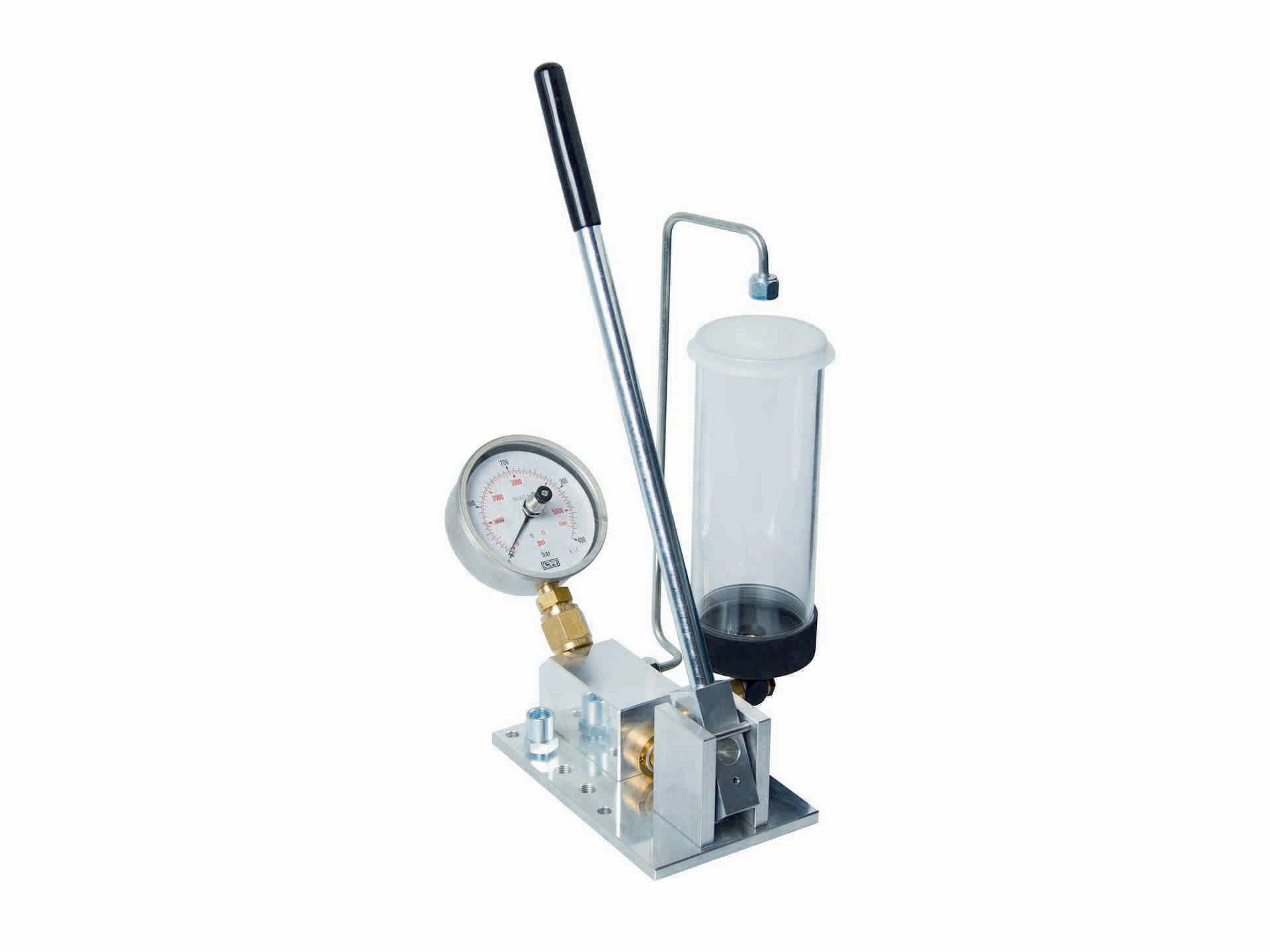

Injector tester 0...10 bar (GASOLINE)

• For quick, easy and safe testing of injection nozzles / injectors
• The following are tested: opening pressure, spray pattern, tightness and rattling properties
• Measuring range 0...10 bar / 0...145 psi
• Aluminium design with reversible pump lever; enables easy and ergonomic pumping from above or from the front
• Liquid container (330 cm³) with plexiglass splash guard
• Displacement 35 cm³
• Precision pressure gauge NG 100, with rubber protective cap and double band scale bar/psi
• All individual parts available as spare parts
• Article number: BET 06 (041255_4)
• The delivery time for this item is 14 days

SCOPE OF DELIVERY

• 1 test device with pressure gauge
• 1 pressure line, thread M 12x1.5
• 1 adapter DETA, thread M 14x1.5
• Delivery in a box
