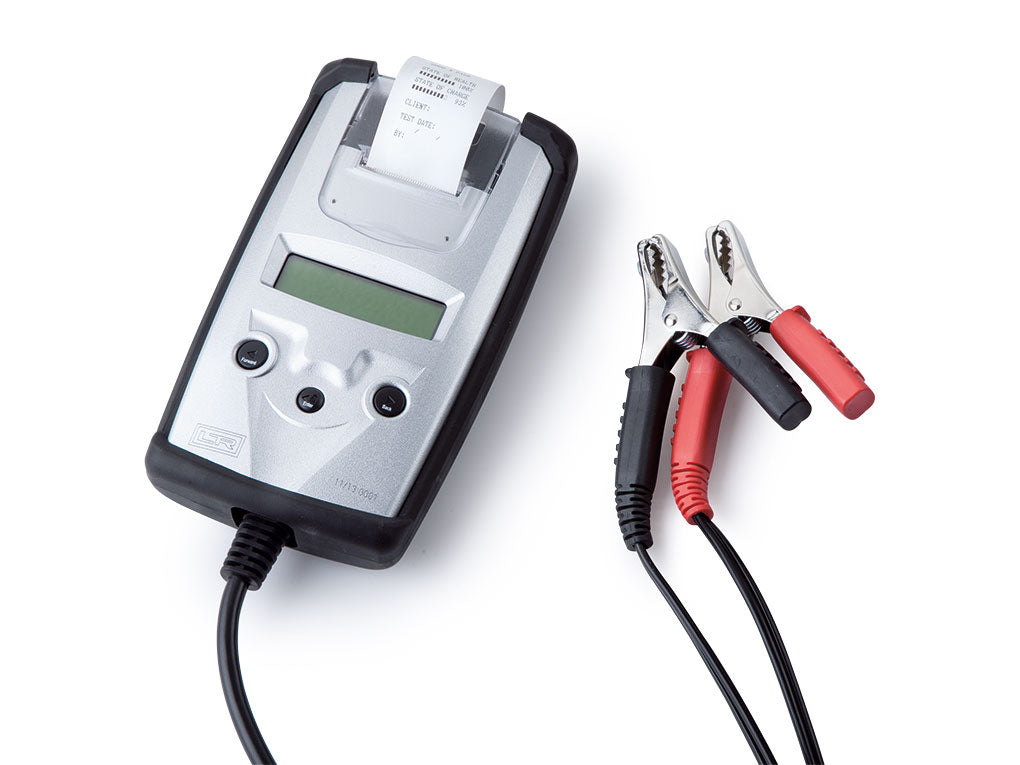

Battery tester with digital display and temperature compensation

• Suitable for 6 and 12 volt batteries (wet [SLI]; EFB, AGM flat, AGM spiral and gel batteries) as well as for 6 V, 12 V and 24 V charging systems
• User-friendly, menu-driven operation
• Quick and easy determination of battery performance taking temperature compensation into account
• Checking battery condition, charge level, internal resistance and cold start current value
• Integrated printer for documenting the measurement results
• Language selection possible

• Article number: DBP 03P ( 070712_1 )

Technical data:

• Voltage measurement range: 1V to 30V/DC
• Cold start current measurement range: JIS: Battery code
  DIN: 25 A to 1300 A
  IEC: 30A to 1500A
  SAE: 40A to 2000A
  EN: 40 A to 2100 A
• Internal supply voltage: 6 V/DC (4 x 1.5 V)
• External supply voltage: min. 7.5 V/DC, max. 30 V/DC
• Weight: 600g
• L x W x H: 195 x 110 x 40 mm

SCOPE OF DELIVERY

• 1 battery tester
• 4 device batteries type AA 1.5 V
• 2 rolls of printer paper
• 1 instruction manual
• 1 suitcase
